Seedbed cultivators Carina
Carina seedbed cultivators are designed for comprehensive soil preparation in a single pass. They are highly effective at crushing clods, breaking up crusted soils, destroying weeds, and mixing mineral fertilizers with the soil.
The machine is equipped with light spring tines fitted with replaceable points (coulters). The tines are arranged in four rows on the cultivator frame, with a tine spacing of 10 cm.
At the rear, the unit can be equipped with either floating string rollers or spring-loaded rollers with a diameter of 295 mm.
The working depth (up to 12 cm) is precisely adjusted using the support wheels.
For easier hitching, the machine can be equipped with a hitch crossbar.
| Model No. | U724/1 | U724/3 | U724/5 | U724/7 | U725* | U725/1* |
|---|---|---|---|---|---|---|
| Working width (m) | 1,8 | 2,1 | 2,5 | 2,8 | 3,0 | 3,2 |
| Working depth (cm) | 12 | |||||
| Number of tines (pcs) | 18 | 21 | 25 | 28 | 30 | 32 |
| Tine spacing (cm) | 10 | |||||
| Rear roller diameter (mm) | 295 | |||||
| Machine weight with floating string rollers (kg) | 345 | 370 | 410 | 450 | 510 | 540 |
| Machine weight with spring-loaded string rollers (kg) | 375 | 405 | 455 | 500 | 565 | 595 |
| Power requirement (kW / HP) | 30 / 40 | 35 / 48 | 40 / 55 | 45 / 62 | 50 / 68 | 55 / 75 |
| 3-Point Linkage System | Cat. II | |||||
*Transport on public roads is strictly prohibited.
spring tines

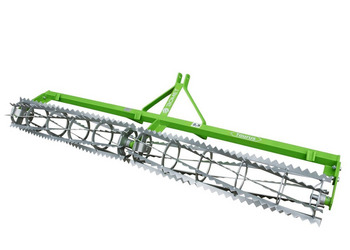

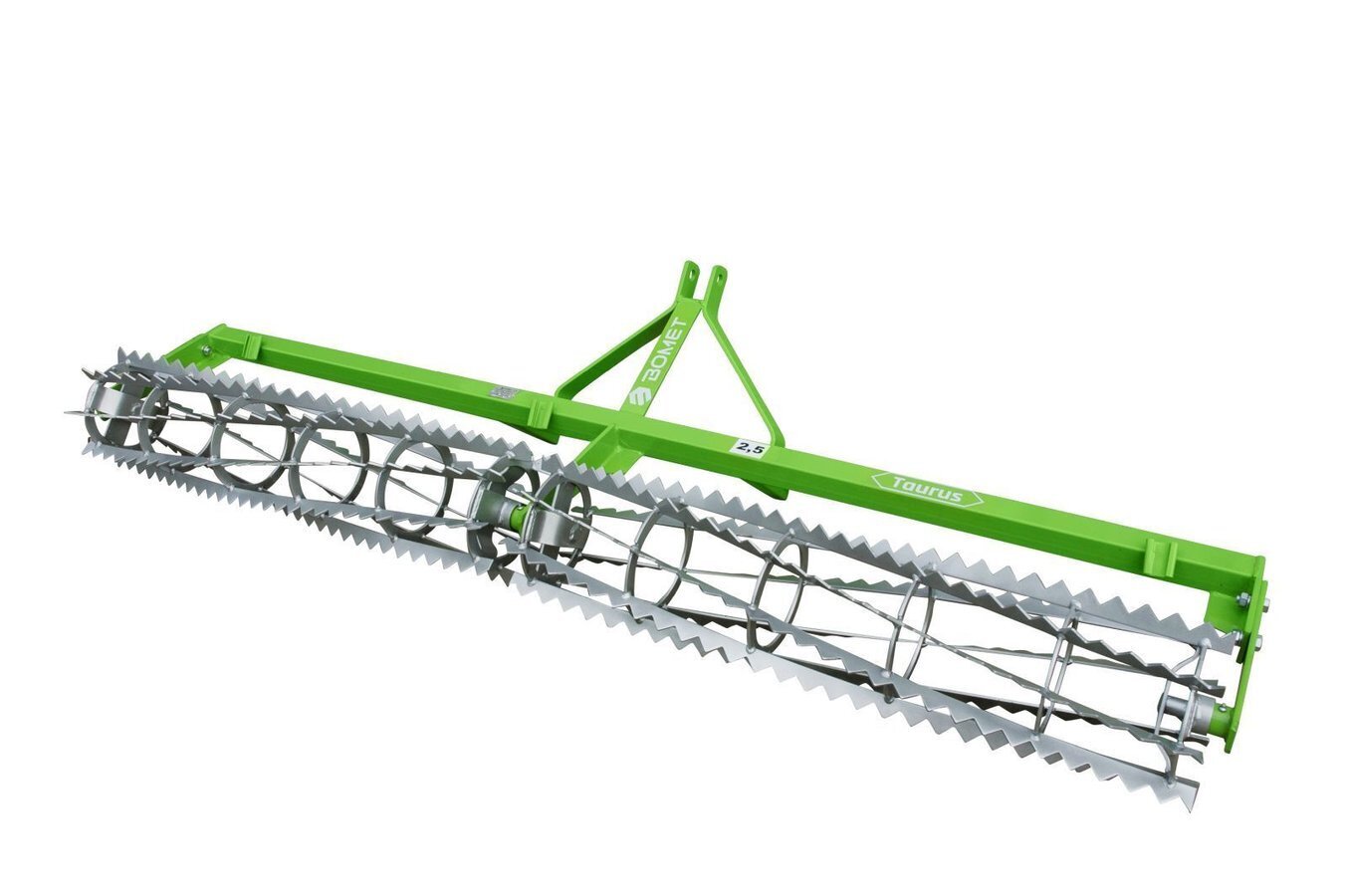

single string roller Ø295 mm
floating double string roller Ø295 mm
spring-loaded double string rollers Ø295 mm
Wyposażenie dodatkowe
hitch crossbar
